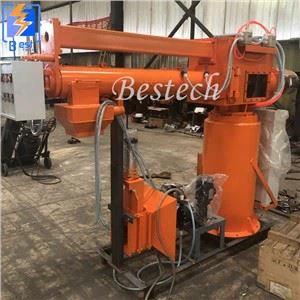

The mixing arm has a frame structure supporting two half shells, which form the mixing tube. These are split length-ways and are hinged at a single point behind the sand inlet. This opening arrangement gives easy access to the mixing shaft and blades for maintenance and cleaning. The mixing tube may be fitted with are movable wear lining (optional). It has a mixer shaft with removable/interchangeable forged steel blades with tungsten carbide plates on every wear face.
Model | S245 | S2410 | S2415 | S2420 |
Productivity (t/h) | 5 | 10 | 15 | 20 |
Diameter (mm) | Φ203 | Φ219 | Φ225 | Φ250 |
Rotation rate (r/min) | 960 | 970 | 720 | 730 |
Motor power (kw) | 4 | 7.5 | 11 | 15 |
Gyration radius (mm) | R2000 | R2000 | R2000 | R2000 |
Binder quantitative accuracy | 0010010 lt;±2% | |||
